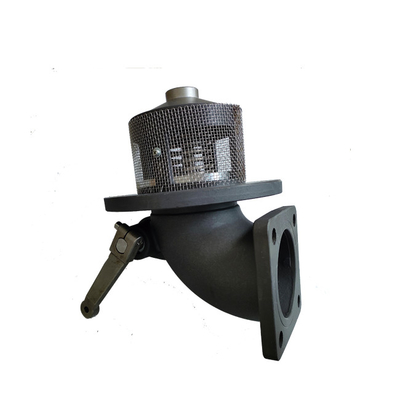

Flange Type Unloading Fuel Tank Foot Valve For Diesel Tank HDF80FS

Name: Flange Type Unloading Fuel Tank Foot Valve For Diesel Tank HDF80FS
Brand: Anhui Bernet Intelligent Technology Co.,Ltd
SKU: HDF80FS
Price: 35.00 USD
Availability: InStock

Brand Name:	Bernet
Model Number:	HDF80FS
MOQ:	10pcs
Price:	$60-$80.00/10PCS
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui，China

Certification:

ISO900,OIML,CE

Document:

Product Brochure PDF

Working Pressure:

0.1-0.6MPa

Valve Type:

Foot Valve

Color:

Gold

Warranty:

1 Year

Connection Type:

Threaded

Size:

1 Inch

Flow Rate:

10-50L/min

Weight:

0.3kg

Inlet/Outlet Diameter:

25mm

Temperature Range:

-20℃ To 80℃

Application:

Fuel Tank

Installation Type:

Horizontal

Material:

Brass

Packaging Details:

2pcs each carton

Supply Ability:

10000pcs per month

Highlight:

Flange Type Fuel Tank Foot Valve

Unloading Fuel Tank Foot Valve

Flange Type foot valve for diesel tank

Product Description

Product Overview

Emergency Shut Valve is installed on the bottom of the tanker.the top parts is tightly sealed inside the tanker. External sheargroove design limits product spillage when the tanker is crasheddown, it will automatically cut off itself via this groove under thesituation there's no affectation on the sealing. This will efficientlyprotect the over rolled tanker from leakage to ensure the safetywhen transportation. This product is suitable for water, dieselgasoline and kerosene and other light fuel, etc.

The whole valve body is passed a special surface process toimprove the anti-corrosion.Design and high lift poppet minimizes pressure drop to givemaximum flow rate.Meets the standard requirements to limit product spillage in theevent of an accident.
If need, can be installed a outernal cylinder to do the pneumaticcontrol.

Nominal diameter	3inch
Working pressure	0.6MPa
Open method	Mechanical
Temperature range	-20-+70°C

FAQ

1. who are we?
We are located in Anhui, China, started from 2009,selling to Africa(50.00%),Asia countries(20.00%),Mid East(20.00%),South America(10.00%). There are total about 51-100 people in our company.

2. how can we guarantee quality?
100% testing before delivery.

3.what can you buy from us?
fuel dispenser,LPG dispenser, adblue dispenser, spare parts for dispensers ,tank truck parts,industry fueling machine, petrole machine.

4. why should you buy from us not from other suppliers?
1:we do toolling ourself. 2:we do casting ourself.3: we do CNC maching ourwelf,4:we have professional R&D team. 5: we have professional engineer both on mechanical and electronic. 6: 100% testing with professional device.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR and customer local money.
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
