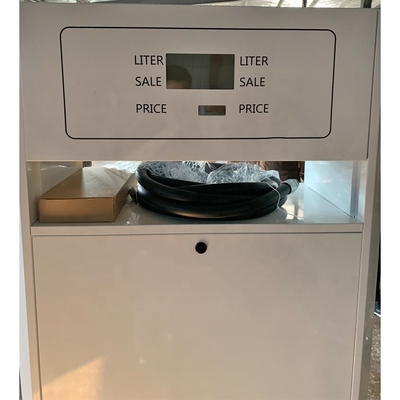

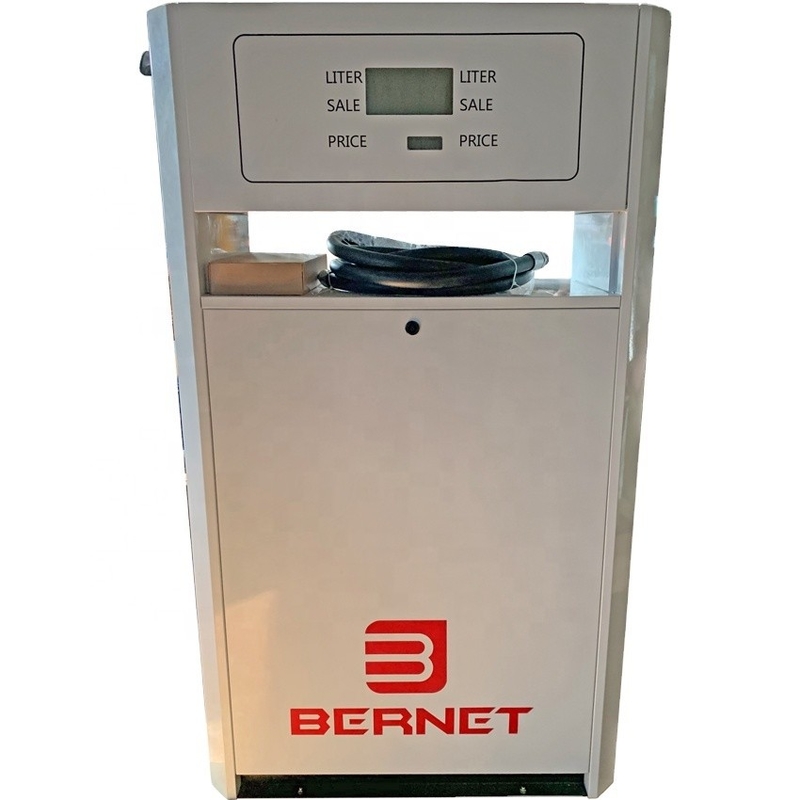

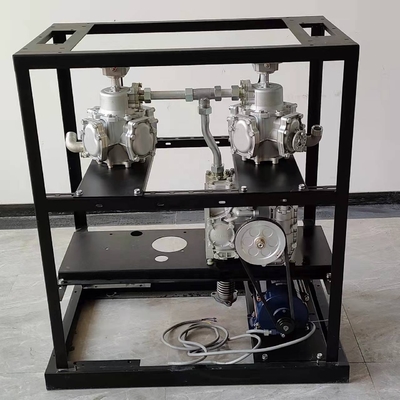

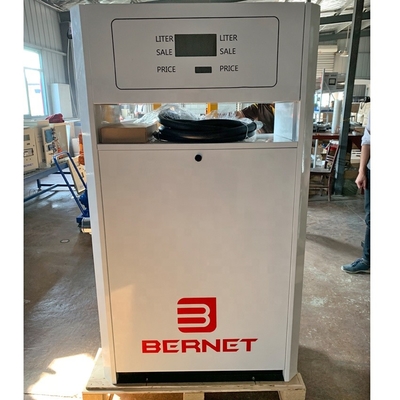

60L/Min Fuel Dispenser Machine Gasoline Pump Unit For Service Station BNT50D111

Brand Name:	BERNET
Model Number:	BNT50A111/212/222/424/636
MOQ:	2pcs
Price:	$1000.00 - $2000.00/pieces
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui, China

Certification:

ISO900,OIML,CE

Document:

Product Brochure PDF

Brand:

BERNET

Product Name:

Fuel Dispenser

Model:

BNT50D111/212/222/

Ambient Temperature::

-40℃~+55°C

Humidity:

≤95%

Max Flow:

60L/min Or 80L/min

Repeating Accuracy:

≤0.15%

Inlet Vacuum:

≥54kpa

Noise:

≤70dB(A Class)

Single Range:

1~9900.00

Port:

Hefei.Shanghai

Packaging Details:

1PCS PER CARTON

Supply Ability:

500 Piece/Pieces per Month

Highlight:

60L/min Fuel Dispenser Machine

Gasoline Fuel Dispenser Machine

60L/Min gasoline dispenser pump

Product Description

Main technical parameter
￭ Accuracy:±0.3％
￭ Delivery Rate:5～50L/min
5～90L/min
5～ 120L/min
5～180L/min
5～250L/min
5～500L/min
￭ Vacuum Of Pump Inlet: ≥0.06Mpa
￭ Register Range :0.00～999999.99L
￭ Totalizer Range:0.00～9999999999.99L
￭ Presetting Range:1.00～99999L
￭ Power Supply:AC380V±20％ (50±1)Ｈz (60±1)Ｈz
AC220V±20％ (50±1)Ｈz (60±1)Ｈz
DC12V±1 DC24V±1 OPTI0NAL
Ex-proof Motor:0.75Kw ,1.0 Kw
Ambient Temperature :-40℃～+55℃
