products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fuel Dispenser
Created with Pixso.

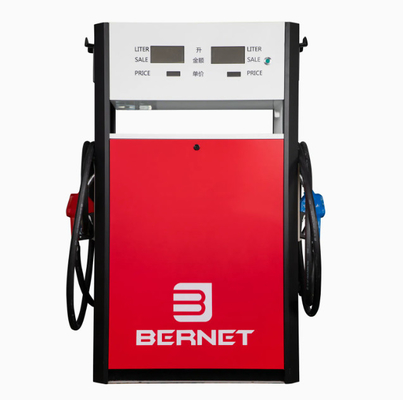

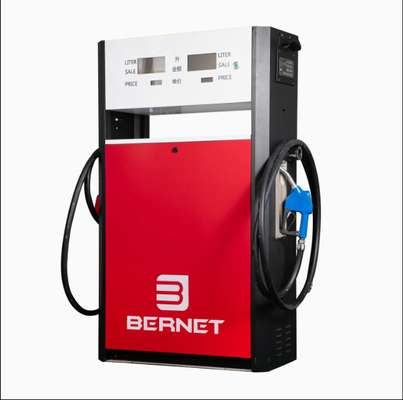

Bernet 2 Nozzles High Flow Rate With 70-80L/min Top quality Fuel Dispenser for Gas Station

Bernet 2 Nozzles High Flow Rate With 70-80L/min Top quality Fuel Dispenser for Gas Station

Brand Name: BERNET
Model Number: BNT50J
MOQ: 2
Price: US$857.00-1,614.00 per piece
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Detail Information
Place of Origin:
Anhui,China
Certification:
ISO9001.ATEX,UL,MID,OIML
Operation Mode:
Normal
Function:
Filling Gasoline/Diesel/Kerosene
Protocol:
RS232/RS485
Accessories:
Motor, Pump, Flow Meter, Display, Nozzle,
Pump Type:
Vane, Gear, Submersible, Suction
Line:
1 To 2 Line
Nozzle:
1 To 2 Nozzle
Material:
Steel
Inlet Vacuum:
≥54kpa
Outlet Vacuum:
≤0.3MPa
Noise:
≤70dB(a Class)
Humidity:
≤95%
Operating Temperature:
-40ºC~+55°c
Max Flow:
60L/Min Or 80L/Min
Production Capacity:
1000 Sets Per Month
Packaging Details:
1100X540X2150 mm
Supply Ability:
1000 pieces per month
Highlight:

Top quality Fuel Dispenser

Product Description

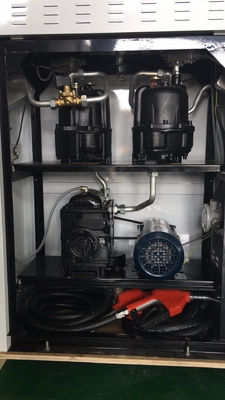

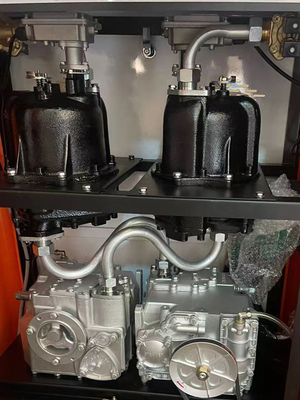

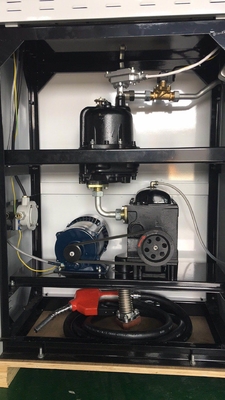

Detailed Photos




Bernet 2 Nozzles High Flow Rate With 70-80L/min Top quality Fuel Dispenser for Gas Station 0

Bernet 2 Nozzles High Flow Rate With 70-80L/min Top quality Fuel Dispenser for Gas Station 1









Bernet 2 Nozzles High Flow Rate With 70-80L/min Top quality Fuel Dispenser for Gas Station 2

Product Parameters


Features
Flowrate Options
Standard Flow (Gasoline/Diesel)
High Flow (Diesel)

Delivery speed
40-50 L/ Min'(Simultaneous fueling : 35 L /min
70-80L/ Min'(Simultaneous fueling : 40 L/min)

Market Availability
Middle East, Africa & South East Asia
Middle East, Africa & South East Asia

Approvals
ATEX, MID, OIML,SONCAP


Fuel Compatibility
Up to 10% Ethanol content & 5% Biodiesel content


Max Number of Fuel Grades / Meters
2 Grades / 2 Meters


Hose Management
Easy Hose with Non-obstructing Money Volume Display View


Pump Stop (option)

Noise Level - 65dB (Suction Model)

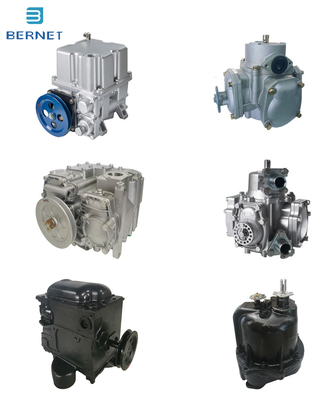

Hydraulics Options
Metering Unit
Bernet piston Meter with improved e-Calibration
Bernet piston Meter with improved e-Calibration

Pulsar
Option (Secure pulsar with lift-off detection )
Option (Secure pulsar with lift-off detection )

Motor (Suction Model)
Standard: 1phase, 220-240 Vac | option : 3 Phase, 380 - 440 Vac
Standard: 1 phase, 220-240 Vac |
option : 3 Phase, 380 - 440 Vac

Pump Filter Type
Standard: Washable | Option: Replaceable
Standard: Washable | Option: Replaceable

Meter Filter Type
Standard: Washable | Option: Replaceable
Standard: Washable | Option: Replaceable

Pumping Unit
Standard:Vane Option: Gear
Standard: Vane | Option: Gear

Display Technology
High Contrast LCD Display with direct sunlight readability
High Contrast LCD Display with direct sunlight readability
Electronic Options
Display Size
Money :8 digits with floating decimals (99,999,999) 40 mm height
888888.88


Volume :8 digits with floating decimals (9,999,999), 40 mm height



PpU : 6 digits with foating decimals (999,999), 25 mm height/option: 5 digits with foating decimals (999,999), 25 mm height


Keypad
Film keypad/option:stainless steel keypad
Film keypad/option:Stainless Steel keypad

PoS Connectivity
Bernet Wire Protocol | option: IFSF Protocol


Electronics Power Supply
Single Phase, Standard: 90 Vac - 260Vac | Option: 90 Vac - 380Vac


Totalizer (Cumulative & Daily)
12 Digits (99gg99999.999)


Ticket Printer (Option)

Motor Over-voltage Protection

Electronically Adjustable Flow rate (Option)

Electro mechanical Totalizer (Option)
Enhanced Security EMT | 7 digit Totalizer (9999999) with 1 Liter resolution
