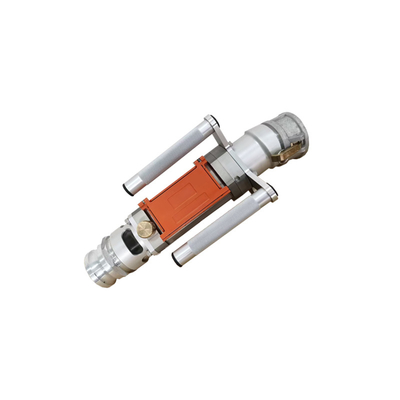

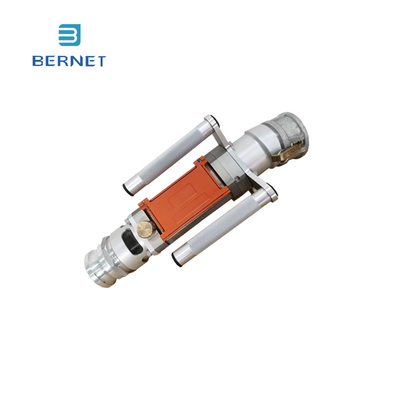

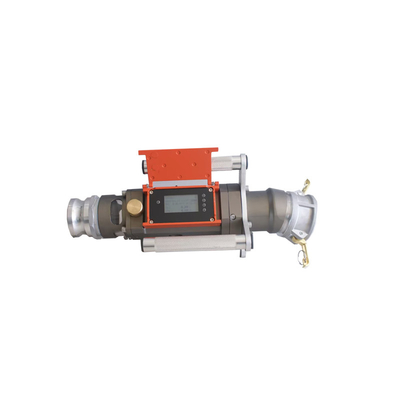

Bernet 3 Inch Aluminum Gravity Portable Tube Flow Meter for Gas Station

Name: Bernet 3 Inch Aluminum Gravity Portable Tube Flow Meter for Gas Station
Brand: Anhui Bernet Intelligent Technology Co.,Ltd
SKU: PTM80
Price: 50.00 USD
Availability: InStock

Brand Name:	BERNET
Model Number:	PTM80
MOQ:	1
Price:	US dollar $950.00-$1,100.00
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	500 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui；China

Certification:

ISO9001.ATEX,UL,MID

Document:

Product Brochure PDF

Product Name:

PTM80 Portable Tube Flow Meter

Warranty:

1year

Material:

Aluminum

Accuracy:

±0.1%

Ambient Temperature:

-25℃~+55℃

Working Voltage:

Lithium Batteries 3.6V

Flow Rate:

130-1300L/min

Applicable Medium:

Gasoline/Diesel/Kerosene/Ethanol Gasoline Etc.

LCD Screen:

English Version, 7 Digit Display

Pipe Diameter:

3 Inch(DN80)

Ex Grade:

Ex Ia Ll BT4 Ga

Single Package Size:

85X30X30 Cm

Single Gross Weight:

6.000 Kg

Packaging Details:

Carton

Supply Ability:

500 Pieces per Month

Highlight:

Portable Aluminum Tube Flow Meter

3 Inch Aluminum Tube Flow Meter

Gas Station Aluminum Tube Flow Meter

Product Description

Product Description

The portable flow meter is mainly used for measuring gravity flow unloading of diesel, gasoline.

Technical Features

• Accuracy: ±0.2%

• Flow Rate: 130-1300L/Min

•Max pressure: 0.5Mpa

•Viscosity Range: ≤13 mm^2/S

• Product weight: 6 kgs

Technical Parameters

LCD Screen	English Version, 7 digit display
Pipe Diameter	3 inch (DN80)
Accuracy	±0.1%
Repeatability Accuracy	±0.02%
Flow Rate	8-80m³/h(130-1300L/min)
Min. Scale	1L
Ex Grade	Ex ia ll BT4 Ga
Protection Grade	IP67
Max Pressure	0.5MPa
Oil Viscosity Range	≤13mm²/s
Power Supply	2 Lithium Batteries 3.6V (2 years life service)

The type flow meter can be applied to

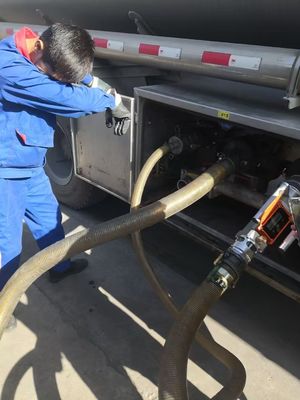

• Regular unloading of oil at gas stations

• Oil receiver (tanker)

• Segmented unloading

• Oil recovery

• Calibration of tank gauge

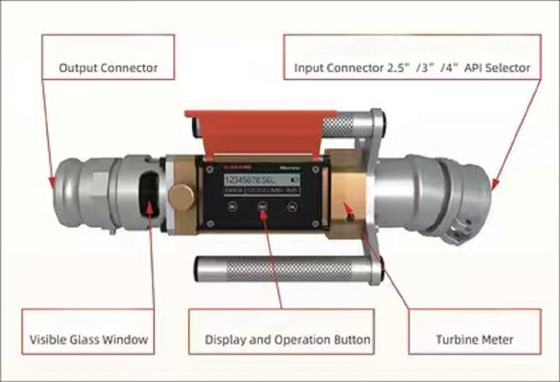

• Portable flow meter interface specification

• Inlet interface: 3 inch quick connector Negative end (DN80)

• Oil outlet interface: 3 inch quick connector (DN80)

Data Communication

• Portable flow meter can be equipped with data collector to upload data to computer through USB data cable.

• The metering parameters and configuration files of the portable flow meter can be uploaded separately to facilitate the testing of the equi pment (periodic inspection, inspection and diagnosis)

• Display - Metering module (UNI) manages unloading metering related operations and fault maintenance. UNI module operating temperature range: -25°C to 55°C.

User Menu

The display metering module has no switch and the display is always on. Reset is required before starting the new test.

Save and reset the last measurement data and display the current data. Each button should last 3 seconds
