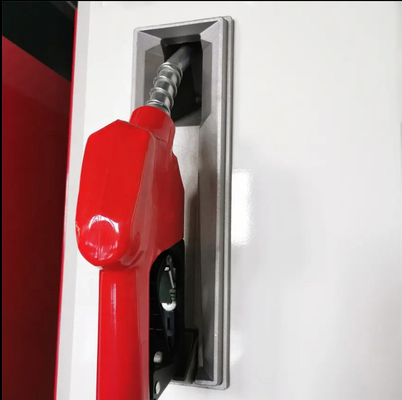

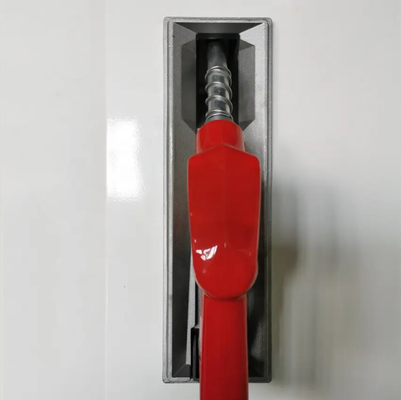

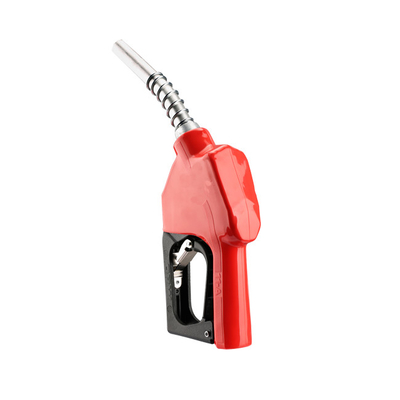

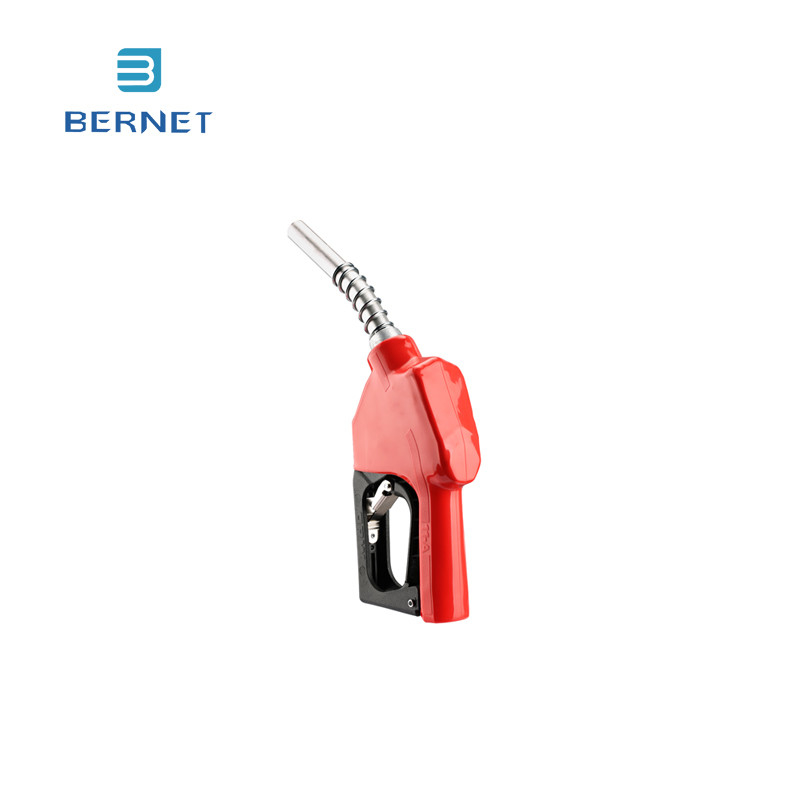

Bernet 3/4inch Inlet Aluminum Durable Fuel Nozzle for Petrol Dispenser

Product Description:

Bernet Fuel Dispenser Nozzle, engineered with aerospace-grade aluminum alloy and anti-corrosion PVC composite for superior durability and operational efficiency in demanding environments. Designed for gas stations and industrial fueling systems, this nozzle combines ergonomic handling with advanced safety features, ensuring reliable performance across diverse applications.

Technical Parameters:

Material: Aluminum alloy body (weight reduction by 30% vs. steel) + PVC-coated grip (heat-resistant up to 80°C)

Nozzle Sizes: 1-inch and 3/4-inch options, compatible with standard fuel tank openings.

Flow Rate: Adjustable range of 5-45 L/min, optimized for rapid refueling without splashing.

Pressure Rating: Operating pressure up to 0.8 MPa, with a shut-off response time <0.3 seconds.

Sealing Mechanism: Integrated dual O-rings (NBR material) for leak-proof connections, compliant with API 2024 standards.

Temperature Range: -40°C to +50°C, suitable for extreme climates.

Features & Benefits:

Ergonomic Design: Lightweight aluminum alloy construction reduces operator fatigue, while the PVC grip enhances slip resistance and thermal insulation.

Auto-Stop Function: Utilizes Venturi effect technology to detect tank fullness, automatically stopping fuel flow to prevent overflow

Durability: Corrosion-resistant coating and reinforced internal valve structure extend lifespan to >500,000 cycles, even with frequent use

Safety Compliance: Meets ATEX/IECEx certifications for explosive environments, with electrostatic dissipation design to minimize ignition risks.

Applications:
Ideal for gasoline, diesel, and biofuel dispensing, Bernet’s nozzle is widely used in commercial gas stations, logistics fleets, and industrial refueling stations. Optional thermal insulation sleeves and customizable nozzle tips are available for specialized requirements.

COMPANY PROFILE

Anhui Bernet Intelligent Tech Co.,LTD is located in Hefei City,Anhui Province,China.It was established in 2009. Our company's fore runner,Bernet Machinery&Equipment Co.,LTD. Our company is mainly engaged in the research and development, manufacturing and sales of gas station equipment. The products are mainly exported to a high-tech enterprise integrating R&D production and sales. The company is engaged in the manufacture of tank truck accessories,fuel dispenser and fuel dispenser accessories,gas station integrated products,intelligent oil station management system,intelligent tank truck control system, LPG dispenser,LNG and CNG dispenser, and is committed to the assembly of small skid gas station. We have a main team with over 20 years experience on this petroleum manchine field. Our company is also committed to the R&D and manufacturing of automobile charging pile. In 2015, our company and HFUU(Hefei university) have established a high-tech professional team dedicated to the research and development of new high-tech products. Our company will continue to increase the investment in high-tech products and bring Chinese technology to the world. At present, the company's products are mainly exported to more than 50 countries such as Asia, the Middle East and Africa.

FAQ

1. who are we?

We are located in Anhui, China, started from 2009,selling to Africa(50.00%),Asia countries(20.00%),Mid East(20.00%),South America(10.00%). There are total about 51-100 people in our company.

2. how can we guarantee quality?

100% testing before delivery.

3.what can you buy from us?

fuel dispenser,LPG dispenser, adblue dispenser, spare parts for dispensers ,tank truck parts,industry fueling machine, petrol machine.

4. why should you buy from us not from other suppliers?
